ETCR3500 Digital Insulation Resistance Tester 500V/1000V/2500V Megohmmeter with LCD Display - US Plug for Electricians, HVAC, and Industrial Maintenance

Specification: Item Type: Insulation Tester Material: ABS Color: As shown in the picture Model: ETCR3500 Product Rated Voltage: 50V, 250V, 500V, 1KV, 2.5KV, 5KV Output Voltage Accuracy: (5%~10%) ±10V Insulation Range: 0.005MΩ~5.0TΩ Short Circuit Current: >5mA Functions: Insulation test (IR), polarization index test (PI), absorption ratio test (DAR), filter function (4 time selections 10S, 20S, 30S, 40S), voltage test (V), capacitance test ( uF), current test (nA). Power Supply: Rechargeable lithium battery 5200mAhx1 (built-in battery) Adapter: AC110~240V Polarization Index Test: Support Absorption Ratio Test: Support Ramp Test Mode: Take 10% of the preset voltage as a step amount to test until the preset voltage Filter Test Mode: 10S, 20S, 30S, 40S four options How to Use: Get the product, open the upper cover, the user can select the measurement range, rotate the selection, connect the measurement line, you can measure, there is a power line control to the product screen, connect the adapter to . With a USB interface, data can be imported into the computer. The is simple and practical, and it is more comprehensive than the insulation tester on the market. Package List: 1 x Insulation Tester 1 x Power Plug 1 x Adapter 1 x USB Cable 3 x Test Line 1 x Measuring Pen 1 x Clip 1 x Hook 1 x Accessory 1 x Cloth Bag 1 x Instruction Manual

【5‑6 GEAR POSITIONS】-- Rich voltage crotch positions, starting at 250V, up to 5‑6 gear positions. With a large range, the range is as high as 5TΩ

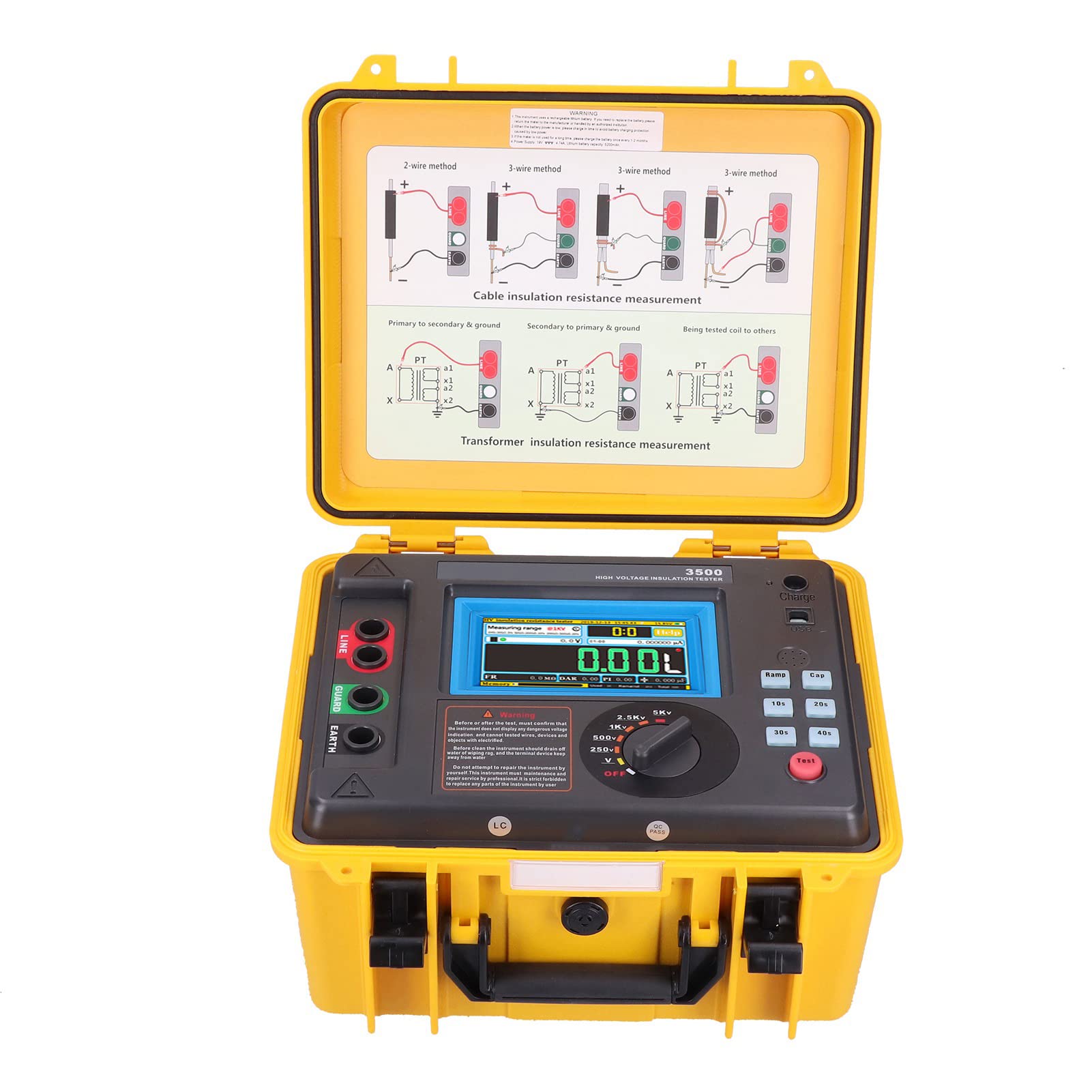

【WIRING DIAGRAM】-- The inner cover is marked with a wiring diagram, so you don’t have to worry about not being wired anymore, it's very user‑friendly design

【 LCD DISPLAY】-- The high‑definition LCD screen is clear at a , all functions are displayed on the same screen, and the rich color design looks very comfortable

【WATERPROOF&SHOCKPROOF DESIGN】-- The outer box is a waterproof box design, close the lid, waterproof and shockproof, easy to store, hard shell, bumpproof, easier to use

【MULTIPLE TEST FUNCTIONS】-- With insulation test (IR), polarization index test (PI), absorption ratio test (DAR), filter function (4 time options 10S, 20S, 30S, 40S), voltage test (V), capacitance test (uF) ), current test (nA)
