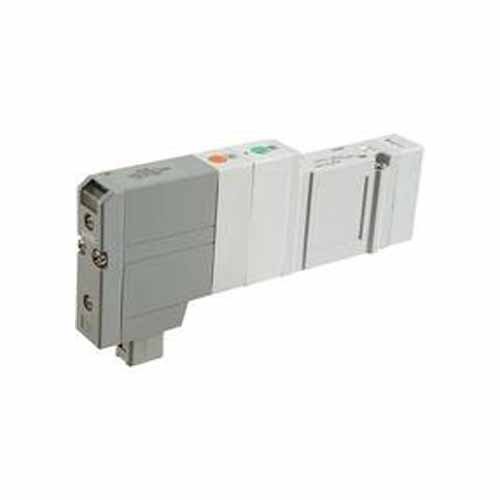

SMC SV1200-5FUD Double Solenoid Valve with LED Indicator - 24VDC, 5-Way, 2 Position, Plug-in Type for Industrial Automation & Pneumatic Systems

The SV series employs a multi-connector instead of the conventional lead wires for internal manifold wiring. By connecting each block with a connector, changes to manifold stations are greatly simplified. Cassette base type manifolds offer the ultimate in flexibility. Manifold sections can be added using a simple release mechanism. Conventional tie-rod base type manifolds are also available. The use of 34 pin connectors allows up to 16 stations with double solenoids.Fluid: airOperating pressure range: -100kPa to 0.7MPaResponse time ms (at 0.5MPa): 18 or lessCoil rated voltage: 12, 24VDCAmbient and fluid temperature: -10 to 50 CEnclosure: IP67 (based on IEC529)

2 POSITION

24 VDC

5-WAY

DOUBLE SOLENOID

PLUG-IN TYPE
