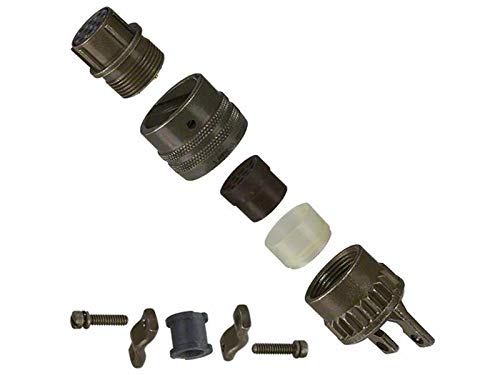

Amphenol MS3116F12-10S 10-Position Bayonet Circular Connector - MIL-DTL-26482 Series I Military Grade Solder Socket Plug - Ideal for Aerospace, Military Equipment & Harsh Environment Electrical Connections

Specification: MIL-DTL-26482Sealing: SealedShielding: YesConnector Type: CircularConnector Style: PlugMounting Type: CableOrientation: StraightEndbell Type: Cable ClampNumber of Contacts: 10Contact Style: SocketTermination Method: SolderInsert Arrangement: 12-10Contact Size: 10#20Contacts Supplied: YesContact Material: Copper AlloyContact Plating: GoldShell Material: Aluminum AlloyShell Plating: Olive Drab Chromate over CadmiumShell Color: Olive DrabInsert Material: NeopreneGrommet Seal Material: NeopreneAmperage Rating: 13AOperating Voltage DC: 850Operating Voltage AC: 600Operating Temperature: -67 to +257 (-55 to +125)Contact Mating life: 500RoHS: NoInsert Rotation Keying: Normal

10 POSITION

10CONTACTS

BAYONET

CIRCULAR CABLE CONNECTOR PLUG SIZE 12

MILITARY SPECIFICATION:MIL-DTL-26482 SERIES I
