Thermomart Plug & Play PID Temperature Controller Box with SSR Output & 6" Probe - Precise Heat Control for Homebrewing, Sous Vide, and DIY Projects

Specifications: Input voltage 90 to 260 VAC - 50 /60 Hz; No transformer or adapter is required. Output voltage Same as the input. with one set point temperature controller Maximum Current 15A Controller Mode 1) :P, PID ,PI, PD, ON/OFF(P=0) 2) Auto setting control Output switching device Solid State Relay (40A - 24/240V AC) with zero voltage crossing switching. Sensor Type Type K 6" long Kiln Thermocouple Temperature control range -50 to 1000 °C (-58 to 1832 °F) Thermocouple: K type 15 cm 6 inch long Sensor cable length 6.6 ft (2m) - Box material & Dimension ABS 200x120x75mm ( 7 3/4 x 4 3/4 x 3" ) Temperature resolution Dual 4-digit LED display, 0.1 for K type and 0.001 for analog input Temperature display unit Fahrenheit (°F) Celsius (°C) Temperature accuracy Measurement: ±0.2%FS Control Accuracy :+/- 1 Celsius Input K (-200~+1300ºC) . But the controller can connect to following input too, S (-50~+1600ºC), Wu3-Re25 (0~2000ºC ), R (-50~+1700ºC), T (0~400ºC), E (0~900ºC), J (0~800ºC), B (200~1800ºC), Pt100 (-200~800.0ºC) or (-200~+600ºC), mV,mA,VDC (-1999~+9999)

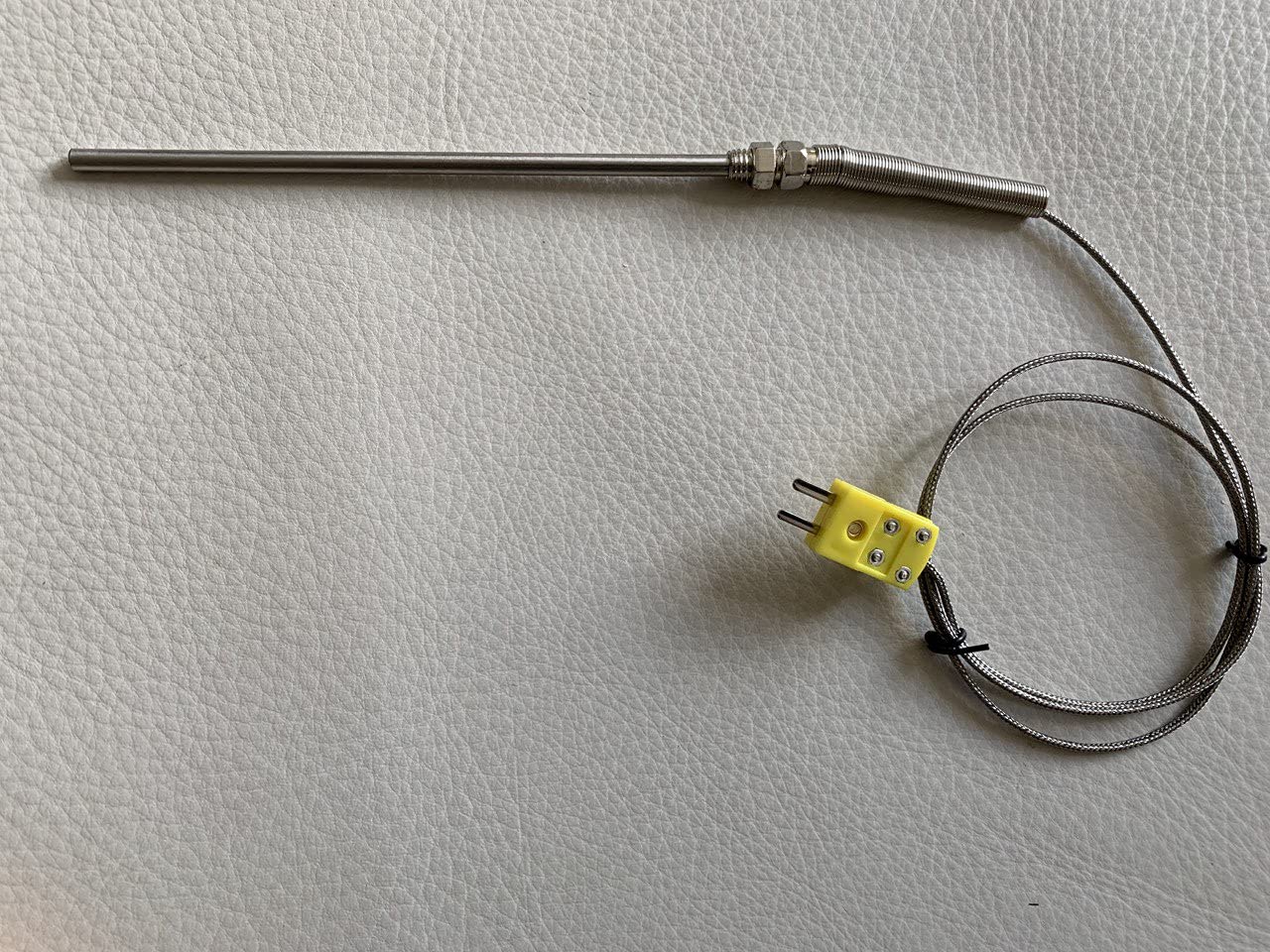

Its heavy duty kiln thermocouple can measure very high temperatures up to 1000C (equals to 1832 °F ). · Equipped with male and female connector, so you can easily change your thermocouple. · To operate, you only need to plug the heater to the socket wire of the controller at the back, drop the sensor into the Kiln, turn on the power of controller and adjust it to your own requirements.

Plug and Play PID one set point Temperature controller box with 15 Amp Maximum current. Equipped with circuit breaker switch 15 Amp (instead of short life fuse) . High Measuring accuracy, ±0.2% or ±1 unit of full input range. Celsius or Fahrenheit display selected on user’s discretion. Calibration function for sensor temperature correction

This plug and play temperature controller with 6" long thermocouple, has a wide range of applications in controlling the temperature of Kilns, Ovens, Furnaces & …. (for loading current up to 15Amp) . This is an inexpensive and heavy duty plug and play controller box. Please consider that if you need to change your sensor to specific one, I can change it for you too. It is One set point temperature controller and if you need ramp and soak please see my other products.

Temperature control range -50 to 1000 °C (-58 to 1832 °F)
