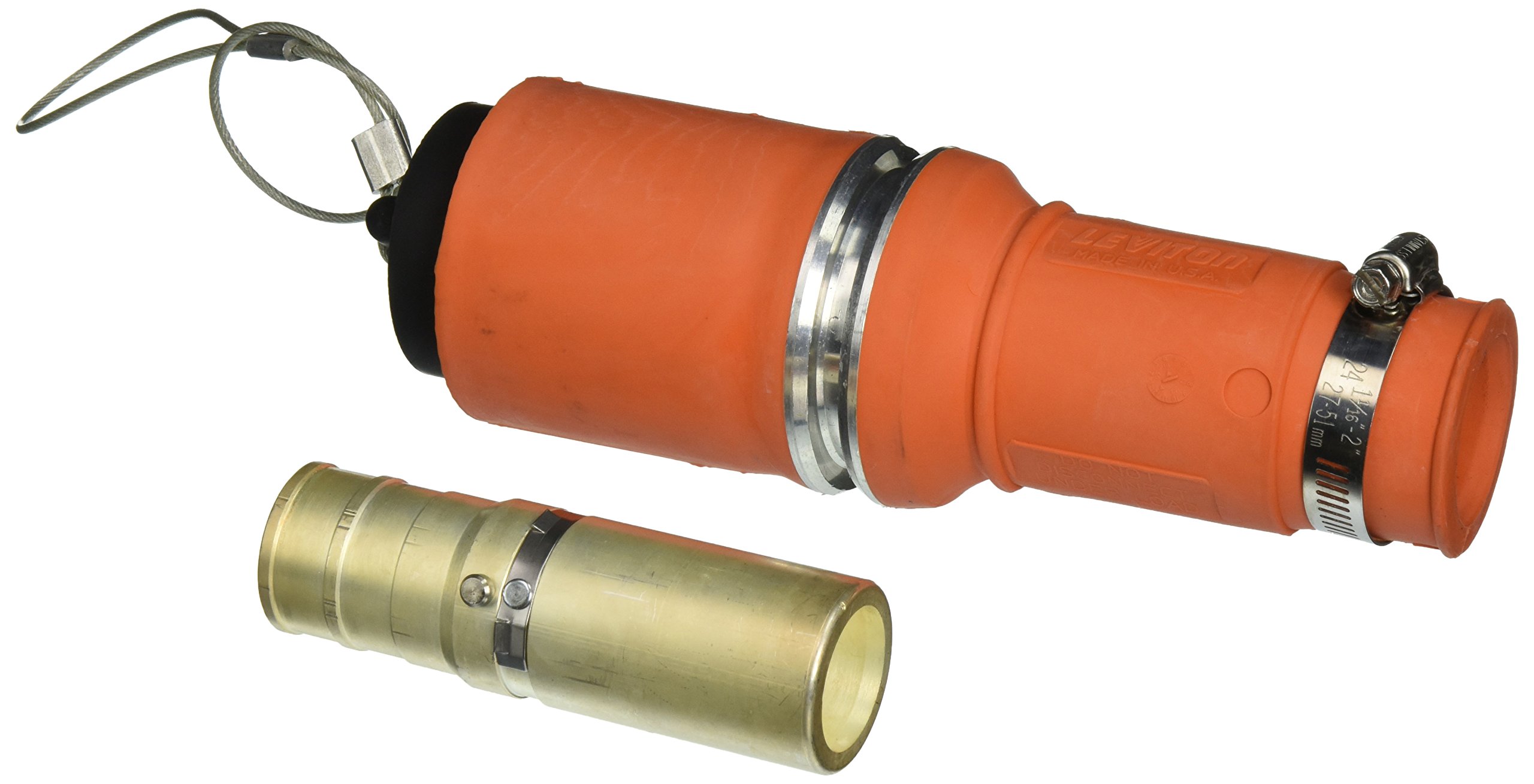

Product Description FEMALE TYPE; 3 INCH DIA X 8.49 INCH L SIZE; CRIMPED CONNECTION TYPE; 535 MCM CABLE SIZE; UL (CANADA AND US), CSA APPROVAL; INDUSTRIAL, OUTDOOR APPLICATION; 1000 V VOLTAGE RATING; VULCANIZED PROCESS; NEMA 3R ENCLOSURE; 898 AMPERE CURRENT RATING; 1 POLE(S) From the Manufacturer Rhino-Hide 49 Series Male and Female Connectors and Panel Receptacles are engineered to exceptional standards for high-amperage power delivery on land-based and offshore oil and gas rigs. Rhino-Hide single pole connectors and receptacles are designed to deliver up to 1,000 Volts AC or DC and up to 1,135 Amps of continuous power under the most extreme conditions with cables ranging in size from 313 MCM to 777 MCM. Designed to mate with other manufacturers' high-amperage single pole connectors and receptacles, Rhino-Hide single pole devices can be installed on both existing silicon controlled rectifiers (SCR's) and generator stations or on new oil and gas rig construction. Rhino-Hide 49 Series Single Pole Female Connector, Industrial Grade, Crimped, 535 MCM Cable, Orange.
