Square D by Schneider Electric 9007AW36 Roller Plunger Limit Switch - 1 NO + 1 NC, 600VAC 15A, Plug-in Standard Box - Ideal for Industrial Automation, Conveyor Systems & Machinery Safety Control

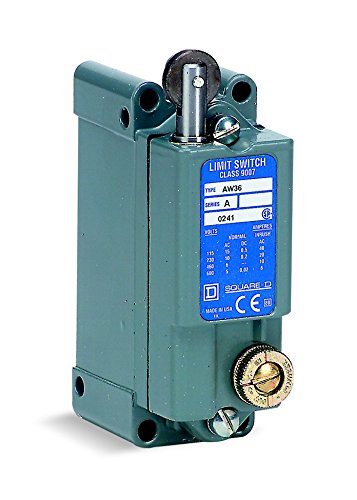

This Square D 9007AW36 heavy duty limit switch has a metal enclosure and a roller plunger. It is made of cast zinc for resistance to corrosion and has a one-direction programmable lateral approach. It has one normally open (NO) and one normally closed (NC) snap-action contact and one entry tapped for a 1/2"-14 National Pipe Taper (NPT) cable connection. The steel spring-return roller plunger has micrometer adjustment. It has an operating temperature range from 0 to 185 degrees C and meets the Ingress Protection (IP) 65 standard for protection against dirt, dust, and water. This switch has National Electrical Manufacturers Association (NEMA) protection ratings of 1, 2, 4, 12, and 13.

Limit Switch - NEMA

Limit switch for making and breaking an electrical connection

Electromechanical detection of presence/absence, passing, positioning, and end of travel

Operating temperature range from 0 to 185 degrees C
