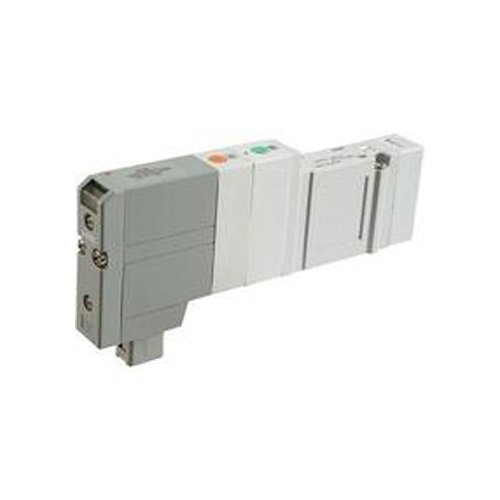

SMC SV2400R-5FU Double Solenoid Valve Plug-in - High Performance Industrial Pneumatic Control Valve for Automation Equipment & Machinery

The SV series employs a multi-connector instead of the conventional lead wires for internal manifold wiring. By connecting each block with a connector, changes to manifold stations are greatly simplified. Cassette base type manifolds offer the ultimate in flexibility. Manifold sections can be added using a simple release mechanism. Conventional tie-rod base type manifolds are also available. The use of 34 pin connectors allows up to 16 stations with double solenoids.Fluid: airOperating pressure range: -100kPa to 0.7MPaResponse time ms (at 0.5MPa): 33 or lessCoil rated voltage: 12, 24VDCAmbient and fluid temperature: -10 to 50 CEnclosure: IP67 (based on IEC529)

PRODUCT LINE: VALVE

PRODUCT FAMILY: SV2000 SOLENOID VALVE, 5-PORT

PRODUCT CLASS: SV2000 NO SIZE RATING

SMC PART DESCRIPTION: VALVE, DBL SOL, PLUG-IN
