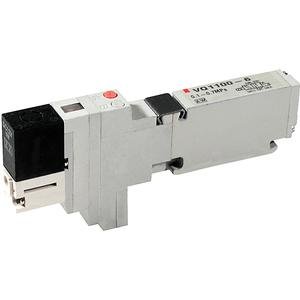

SMC VQ1301NY-5 3-Position Solenoid Valve - High Performance Air Control Valve for Industrial Automation & Pneumatic Systems | Perfect for Factory Machinery, Packaging Equipment & Robotics

VQ valves are ideal for applications requiring high speed, frequent operation, stable response time and long service life. Innovative mounting methods allow valves to be changed without entirely disassembling the manifold. Built-in one-touch fittings save piping time and labor. Fluid: air/inert gasOperating pressure range: 0.1MPa - 0.7MPa(high pressure style 0.8MPa)Effective area mm 2 (Cv): metal seal 3.6 (0.2);rubber seal 5.4 (0.3)Coil rated voltage: 12, 24VDC;100, 110, 200, 220VACResponse time (ms) standard 1W, H 1.5W:2 position metal seal 12 or less;2 position rubber seal 15 or less3 position metal seal 20 or less;3 position rubber seal 25 or lessAmbient and fluid temperature: -10 to 50 C

PRODUCT LINE: VALVE

PRODUCT FAMILY: VQ1000/VQ20/VQ30 VALVE

PRODUCT CLASS: VQ1000 NO SIZE RATING

SMC PART DESCRIPTION: VALVE, 3 POS. PLUG-IN
