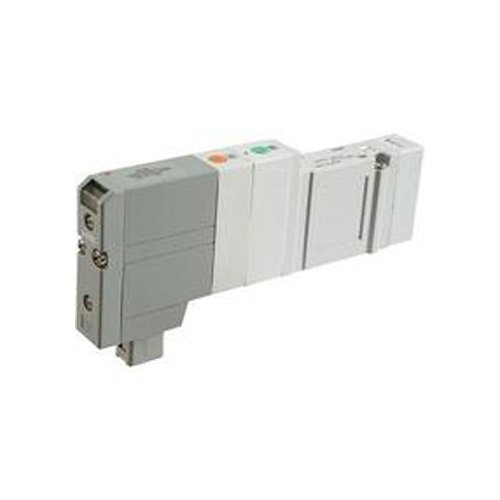

SMC SV4400-5FU Double Solenoid Valve Plug-in - High Performance 5 Port 2 Position Air Valve for Industrial Automation & Pneumatic Systems

The SV series employs a multi-connector instead of the conventional lead wires for internal manifold wiring. By connecting each block with a connector, changes to manifold stations are greatly simplified. Cassette base type manifolds offer the ultimate in flexibility. Manifold sections can be added using a simple release mechanism. Conventional tie-rod base type manifolds are also available. The use of 34 pin connectors allows up to 16 stations with double solenoids.SV4000 series valveSingle, double solenoid and 3 position availableService life: 50 million cycles or moreSupply pressure: 0.5MPaUnrestricted mounting orientation

PRODUCT LINE: VALVE

PRODUCT FAMILY: SV4000 SOLENOID VALVE

PRODUCT CLASS: SV4000 NO SIZE RATING

SMC PART DESCRIPTION: VALVE, DBL SOL, PLUG-IN
