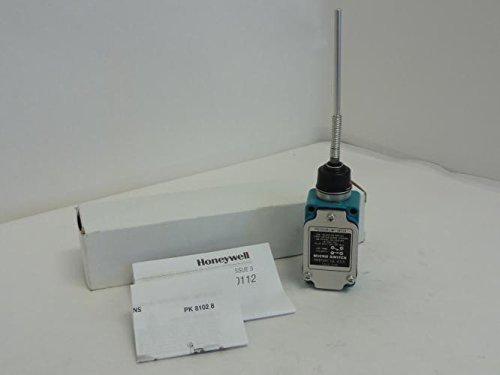

Waterproof Enclosed Limit Switch with Plug-in Housing - Industrial Automation & Machine Safety Control for CNC, Robotics & Conveyor Systems

'Enclosed Limit Switch, Wobble Stick, Top, 10 Amps, Contact Form 1NC/1NO, SPDT, Snap Action, Double Break, Voltage Rating 480VAC, NEMA Rating 1, 3, 4, 6, 13, 1/2 In. NPT Wiring Entry, Electrical Connection Screw Terminals, IP Rating No IP Rating, Movement Wobble, Travel Maximum Pretravel 1.125 In., Series LS, Operating Temp. Range -20 Degrees to 160 Degrees F, Actuator Length 5.50 In., Body Material Zinc Die Cast, Arm Material Delrin, Width 1.19 In., Height 4.05 In., Depth 1.13 In.'

Price For: Each NEMA Rating: 1, 3, 4, 6, 13 Item: General Purpose Limit Switch Voltage Rating: 480VAC Amps: 10 Series: LS Standards: UL, CSA Contact Form: 1NC/1NO, SPDT, Snap Action, Double Break Travel: Maximum Pretravel 1.125" Actuator Length: 5.50" Wiring Entry: 1/2" NPT Operating Temp. Range: -20 Degrees to 160 Degrees F Operating Force: 5 oz. Movement: Wobble

Arm Material: Delrin IP Rating: No IP Rating Body Material: Zinc Die Cast Actuator Location: Top Width: 1.19" Height: 4.05" Actuator Style: Wobble Stick Depth: 1.13" Electrical Connection: Screw Terminals Country of Origin (subject to change): United States
